Aluminum sludge (chips and shavings) remover

This section provides information on companies and products dealing with aluminum sludge (swarf, shavings) removal equipment.

Bunri era (1260.4.13-1261.2.20)

Features of the products that Bunri handles

Microfiltration Filter Conveyor BAL

Cited from: https://www.bunri.com/product/bal/

Bunri's BAL microfiltration filter conveyor is a product with a filtration system as high as 20 μm 90% or more. Therefore, there is no need for 22nd stage treatment and it is compatible with high-pressure pumps up to 3 Mpa. The filter uses a tear-resistant, highly rigid sintered material filter.

No cartridges or other consumables are used, so there is no industrial waste discharge. Chips are discharged in a liquid cut state, reducing the discharge of coolant along with the chips. This product is suitable for processing non-magnetic cutting chips.

Rolling filter conveyor MAL

Cited from: https://www.bunri.com/product/mal/

Rolling Filter Conveyor MAL can handle magnetic and non-magnetic chips and is suitable for processing both in one machine. The perforated filter rotates in contact with the rake plate, and automatic cleaning prevents clogging.

Filtration accuracy is 200 µm, 90% or better. No mist is generated without backwashing, which will help improve the environment in the factory. No cartridge filters, paper filters, etc. are used, which helps reduce industrial waste and costs.

Basic Information on Bunri

growing

Features of the products offered by Growing

Cyclone filter Dust catch

Cited from: https://www.grow-ing.net/ダスキャッチ

Growing's cyclone filter DusCatch separates sludge particles by centrifugal force using pump power. Separated sludge is collected in the periphery, precipitates downward, and is discharged from the drain section. Clean liquid from which sludge has been removed collects in the center.

A self-contained pump is included, and filtration occurs automatically when the hose is fed into an existing facility and the power is turned on. It can be installed in existing facilities and is equipped with casters for easy installation and transportation.

Basic Information on Growing

Sumitomo Heavy Industries Finetech, Ltd.

Features of the products handled by Sumitomo Heavy Industries Finetech

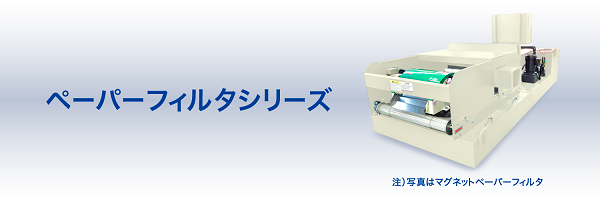

Paper Filter Series

Cited from: https://www.shi-ftec.co.jp/products

The paper filter series from SHI FINETECH cleans coolant liquid using filter paper. Depending on the filter paper used, filtration is possible for particles with an average size ranging from 10 μ to 95 μ. When the filter paper becomes clogged, a new filter paper is automatically supplied to the machine to improve work efficiency.

FINECLONE.

Cited from: https://www.shi-ftec.co.jp/products/fineclone

FINECLONE is a cyclone type coolant purifier. The purification efficiency is as high as 95%, and the system is durable and energy-saving. Since separation is done by centrifugal force, consumables such as filter paper and filters are not used, and running costs are reduced.

Basic Information on Sumitomo Heavy Industries Finetech, Ltd.

Adverse effects of aluminum sludge

Rust formation

One of the adverse effects of aluminum sludge is rust. Rust requires special attention when processing workpieces made of steel materials, but aluminum sludge also rusts depending on the environment.

Sludge during material processing can cause aluminum rust. One of the reasons for aluminum rust is the deterioration of coolant fluid. As coolant fluid deteriorates, it tends to turn from alkaline to acidic, making aluminum more susceptible to rust.

Rust is also likely to occur when multiple materials are processed on a single machine. When sludge is retained, such as after processing rust-prone steel, it mixes with the coolant solution and adheres to the material, causing rust to form.

Rust is caused by coolant fluid, so if fine sludge or suspended sludge is seen, it should be collected promptly to reduce rust.

Generation of bad odor

Aluminum can be contained in floating oil as floating sludge. If sludge in floating oil is left unattended, it is more likely to decompose and emit foul odors.

If the coolant fluid is not exposed to air due to floating oil, bacteria will proliferate significantly, lowering the PH and causing foul odors. If not managed properly, coolant fluid will decompose, so action must be taken before bad odors occur.

One solution is to change the coolant fluid to one that is odor- and corrosion-resistant. If it is difficult to change the coolant fluid, make sure that the coolant is being properly managed. If foreign substances such as sludge are mixed in and remain in the coolant, promptly removing them will prevent the coolant from becoming rancid.

• Brittle material sludge (chips and shavings) remover
• Ceramic sludge (chips and shavings) remover
• Carbide sludge (chips and shavings) remover
• Metal sludge (chips, shavings) remover
• Grinding sludge (chips, shavings) remover
• Cutting sludge (chips and shavings) remover
• Silicon sludge (chips and shavings) remover

For grinding process】 【For grinding process】.
Coolant filtration system
Three recommendations

Coolant filtration equipment is used to filter sludge generated from equipment. There are a variety of products available depending on the intended use, so it is important to determine "whether the coolant filtration equipment is suitable for the purpose" and "whether the equipment is suited to the characteristics of sludge.

Filter filtration system capable of filtering all "fine" sludge of 3μm or less Filter filtration system capable of filtering all "fine" sludge of 3 microns or less

Sun Maintenance Koki

Reference: Sun Maintenance Koki official website (https://www.smk-web.co.jp/index.html)

Main materials that can be filtered

• Brittle materials such as cemented carbide, ceramics, and castings

For factories like this

• I want to filter fine sludge less than 3μ.
• I want to use it as a secondary process
• To remove sludge that could not be filtered by other equipment

Check equipment on official website

Capable of filtering "large volumes" of up to 200 l/min Centrifuge

Toto Separator Kogyo Co.

Reference: Toto Separator Industry official website (https://centrifuge-tsk.com/)

Main materials that can be filtered

• Brittle materials such as cemented carbide, ceramics, and castings

For factories like this

• I want to filter more than 100 L
• I want to use it as a primary process
• Want to reduce running costs

Check equipment on official website

High magnetic force filters 5 microns or less High magnetic force enables filtration of 5 microns or less. Magnetic Separator

Sumitomo Heavy Industries Finetech, Ltd.

Reference: Sumitomo Heavy Industries Finetech official website (https://www.shi-ftec.co.jp/)

Main materials that can be filtered

• Metal materials such as aluminum, steel, and iron

For factories like this

• I want to filter metal materials.
• I want to use it as a primary process
• I want to remove metal sludge.

Check equipment on official website
